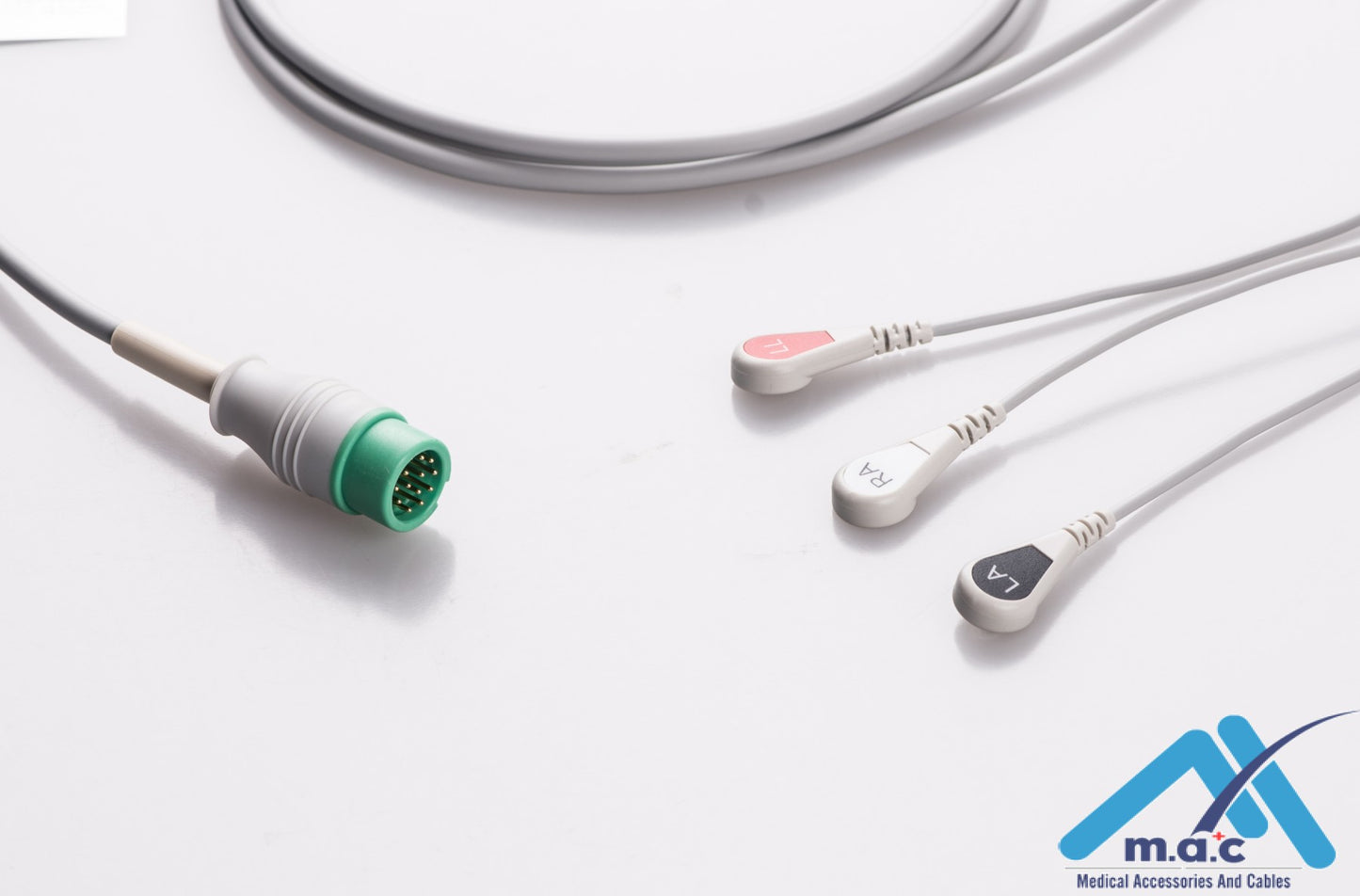

Mindray Reusable One Piece ECG Fixed Cable 23M12S

3 lead snap end

Compatibility:
Mindray>Datascope Beneheart D6;Beneheart T5;Benevue T8;DPM6;DPM7;
iPM-9800;MEC 1000;MPM;Passport 12;Passport 8;PM 5000;PM6000;T8;
Passport 2; Passport V; Spectrum ;Spectrum OR; V12 V21;Trio;Tel-
200;IMEC 8;IMEC 10;IMEC 12;IPM 8;IPM 10;IPM 12

Part Number : 23M12S

COMPATIBILITY:

Manufacturer	Model
Mindray>Datascope	Beneheart D6; BeneView T5; BeneView T8; DPM6; DPM7; iPM-9800; MEC 1000; MPM; Passport 12; Passport 8; PM 5000; PM6000; T8; Passport 2; Passport V; Spectrum; Spectrum OR; V12 V21; Trio; Tel-200; IMEC 8; IMEC 10; IMEC 12; IPM 8; IPM 10; IPM 12

TECHNICAL SPECIFICATIONS:

Category	EGG (Reusable One Piece EGG Fixed Cable)
Compliance with	AAMI ANSI EC53, ISO 10993-1, ISO 10993-5,ISO 10993-10
Latex-free	Yes
Sterilized	No
Cable Colour	Gray
Trunk Cable Diameter	5.0mm
Lead wire Diameter	2.6mm
Trunk Cable Lenght	2.5m
Lead wire Lenght	0.9m
Cable Material	TPU Jacket

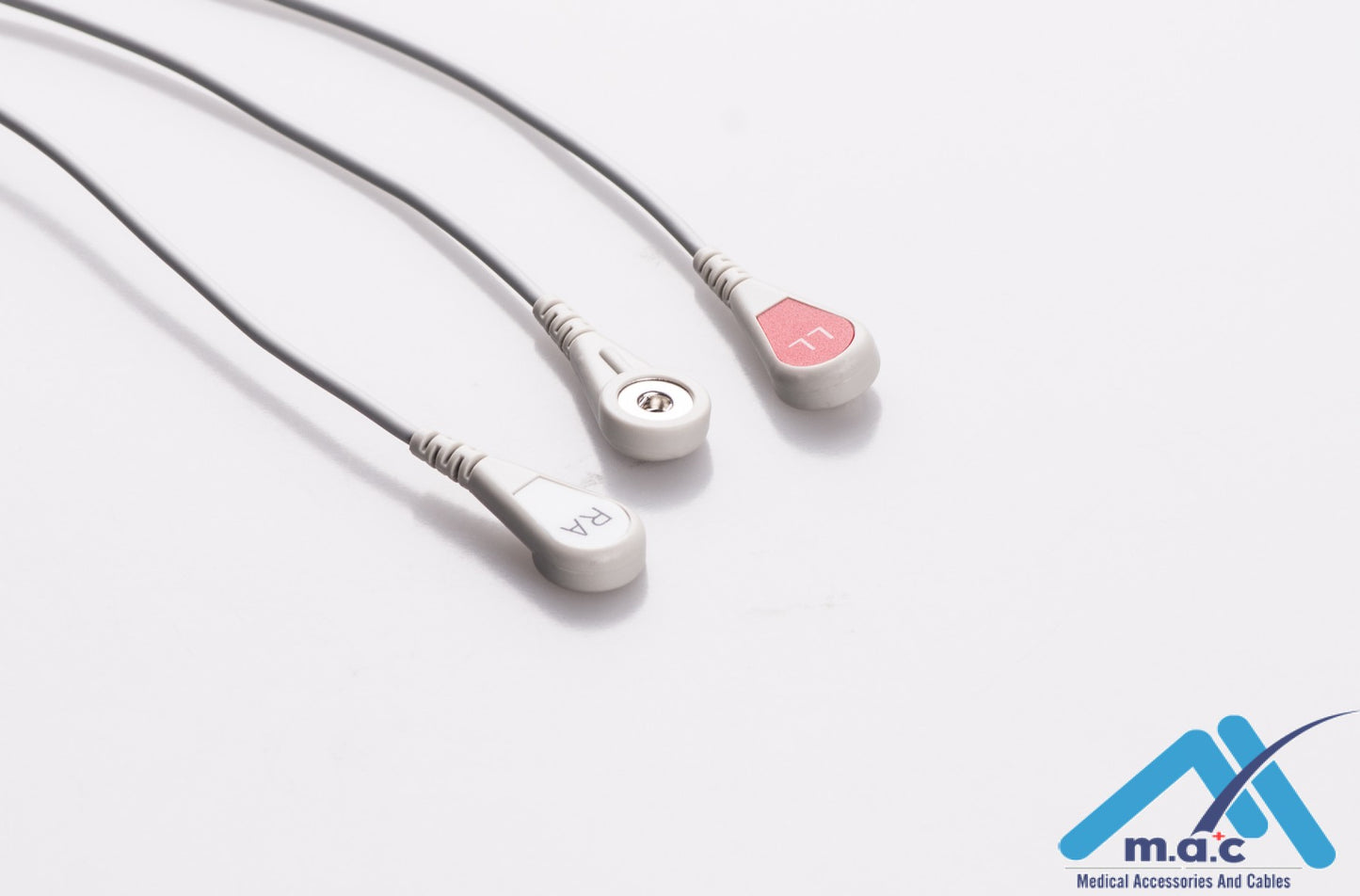

Patient end	Snap
Packaging Type	Bag
Packaging Unit	1pcs/Bag
Lead Number	3
Warranty	12 months
Weight	0.64kg
